Dry type transformers are beneficial for indoor, environmentally sensitive power distribution systems. Unlike other transformers, dry type transformers don’t use oil for insulation which keeps the risk of leakage, fires, and environmental pollution at bay. Their compact design and low maintenance draw dry type transformers to be most useful in commercial buildings, hospitals, data centers, and industrial buildings.
The safety and reliability of dry type transformers are excellent along with operational efficiency. Dry type transformer advantages such as good resistance to moisture and dust and are short circuit safe. They operate quietly and have a simple installation process. Their maintenance costs are low and their long-term performance is good.
What is dry type transformer ?
A dry type transformer uses materials like epoxy resin or air instead of oil for insulation and cooling. It efficiently and safely transfers electric energy and adjusts voltage levels for various applications, so it is one of the advantages of dry type transformer over oil cooled transformer
Because of their resistance to fire, lack of environmental pollution, and low maintenance, dry type transformers are useful in indoor environments. As a result, they are often found in hospitals, data centers, factories, commercial buildings, and some renewable energy runs.
Read More : Choosing Commercial Electrical Transformer

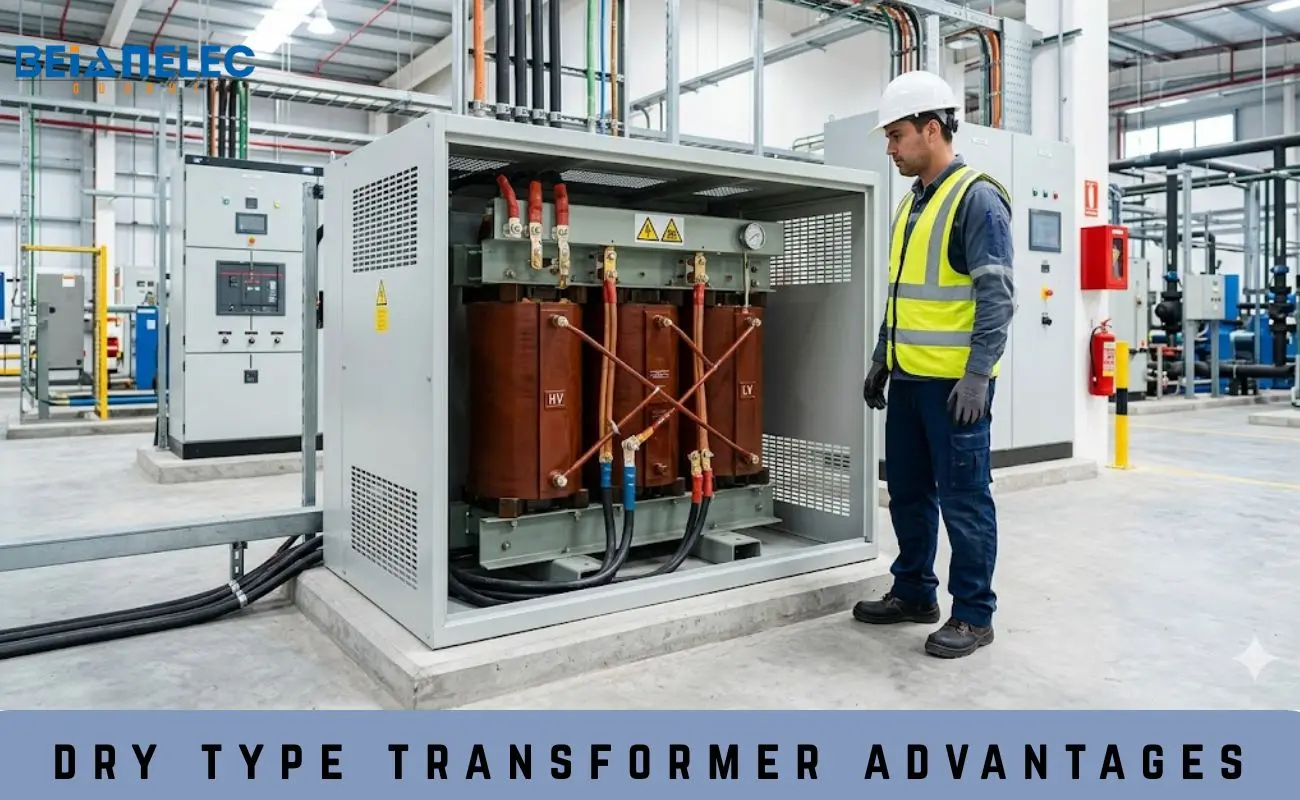

Dry type transformer advantages
There are many dry type transformer advantages such as the following:
- Fire Resistant: There are no risks posed by insulating oil.
- Minimal maintenance: Servicing is easier than oil-filled transformers.
- Environmentally safe: No oil leakage or contamination.
- Safe to install indoors: Safe to use in hospitals, offices and data centers.
- It is has a higher resistance to moisture and operates well even in environments with high humidity and dust.
- Suitable size for small spaces thanks to its compact design
Read More : How to Choose the Best Cast Resin Transformers Manufacturers
How Dry Type Transformers Differ from Oil-Filled Units
In the following table we can understand the advantages and disadvantages of dry type transformer compared to oil type transformer
| Feature | Dry Type Transformer | Oil-Filled Transformer |
| Cooling Method | Uses air or resin insulation | Uses insulating oil for cooling |
| Fire Safety | Higher fire resistance | Higher fire risk due to oil |
| Maintenance | Low maintenance requirements | Requires regular oil monitoring |
| Installation | Suitable for indoor applications | Commonly used outdoors |
| Environmental Impact | Eco-friendly and leak-free | Risk of oil leakage and contamination |
Why are dry type transformers considered eco-friendly?
One point of dry type transformer advantages is that they are safe, oil-free, environmentally safe, and efficient, making them an excellent option to reduce environmental contamination.
- No oil leakage: Eliminates the risk for soil and water pollution.
- Reduced fire hazards: Flammable insulation materials are eliminated, making them safer.
- Low emissions: Causes minimal environmental pollution throughout operation.
- Energy efficiency: Users experience improved energy conservation and reduced power loss.
- Minimal maintenance waste: Eliminates the need for oil disposal and replacement.
- Safe indoor installation: Able to be used in environmentally sensitive areas, including indoor locations and buildings.
Read More : Best Substation Transformer Manufacturers
Impact Of Moisture On Dry Type Transformer Windings
Dry type transformer windings might experience electrical failures and compromised insulation performance as the moisture levels rise.
- Risks of damp windings: Operating dry type transformers may lead to excessive and uneven heating of windings.
- Internal discharges: Internal electrical moisture discharges cause discharges within the transformer.
- Increased chance of transformer failures: Increased maintenance requirements.
- Shortened lifespan: Moisture exposure causes accelerated aging to the insulation.
Through knowledge and presence of moisture problems within dry type transformers the failures can be mitigated from occurring.

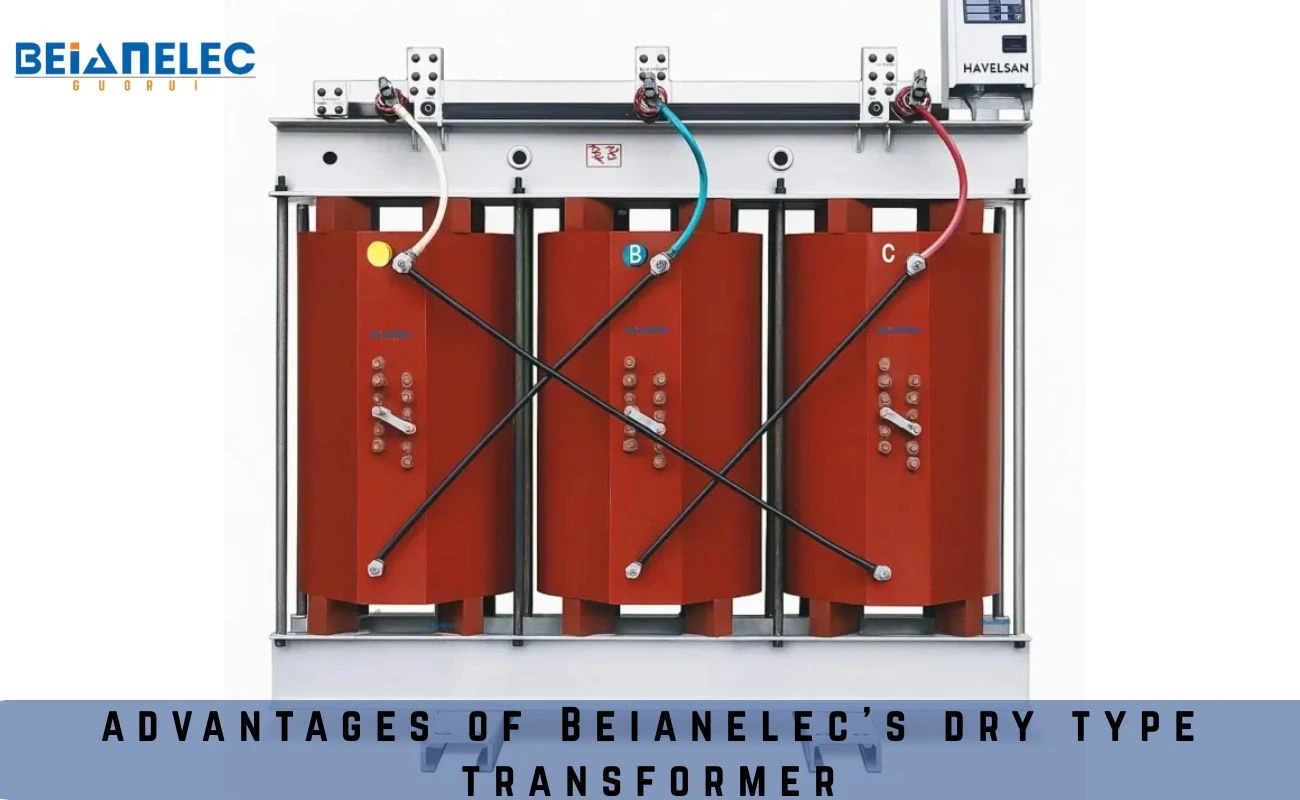

advantages of Beianelec’s dry type transformer
Beianelec dry type transformers are ideal for modern industrial and commercial applications for safe, efficient, and reliable power distribution across the globe.
- Increased energy efficiency: power losses are decreased and the system is able to perform better.
- Fire-safe operation: Oil-free insulation poses minimal threat to both the environment and your safety.
- Minimal maintenance: Eliminates the need for constant oil level checks and improves economics for servicing.
- Intelligent monitoring: SCADA systems enable remote checks and predictive maintenance.
- Tailored Engineering: Offers flexibility for differing voltages, climates, and installation spaces.
- Robust Design: the latest techniques in coil and winding construction are used.
- Environmentally conscientious: Oil leakage is not an issue.
FAQs
Do dry type transformers require a lot of maintenance?
Dry type transformers need less maintenance than oil-filled transformers. To guarantee reliability for a long time, all that’s typically required is a regular cleaning, some visual inspections, connection inspections, and occasional insulation testing. That is also considered as one of the best dry type transformer advantages
Can dry type transformers be installed outdoors?
Yes, it is one of the most common advantages of dry type transformer as it is enclosed in weather resistance and dust proof casings, dry type transformers can be installed in outdoor locations.
