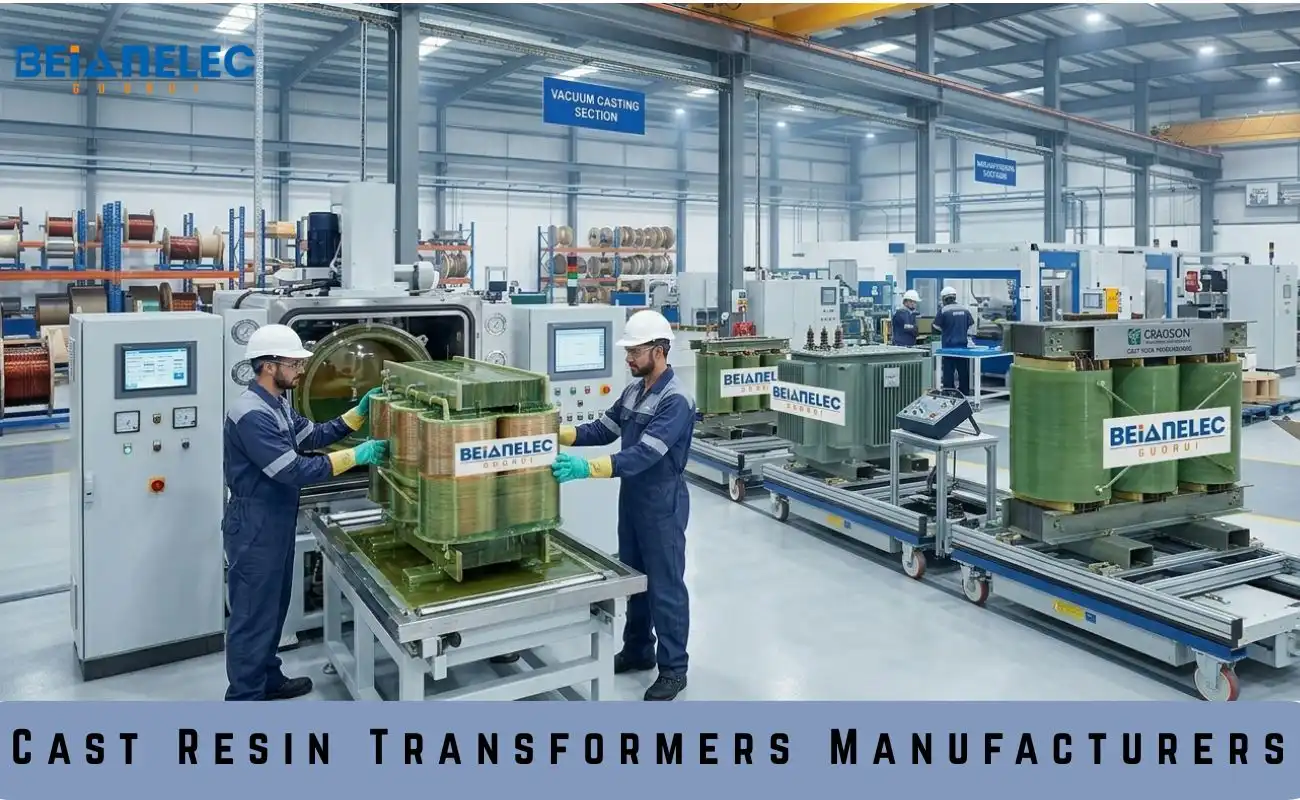

Cast resin transformers manufacturers produce dry-type transformers in which the winding is encapsulated in epoxy resin. These types of transformers are used where fire resistance, low maintenance, and high reliability are of prime consideration. Manufacturers emphasize the protection of the winding. Where thermal performance and the International Electro technical Commission’s (IEC) are of prime consideration. Cast resin transformers are used in commercial, industrial, and infrastructure applications involving renewable energy and the safe and efficient distribution of power.
What is cast resin transformer?
A cast resin distribution transformer is a dry-type transformer with resin-imbedded windings. Beyond good short and long term insulation, protection against moisture, dust, and environmental contaminants is considered a feature that makes them reliable under all conditions.
The main advantage cast resin transformers offer in comparison to oil cooled transformers is the resin transformer’s use of air rather than oil for the cooling medium. This makes cast resin transformers more friendly to the environment. Cast resin transformers are particularly used in building, hospitals and industrial facilities for indoor applications.
Read More : Difference Between Step Up and Step Down Transformers

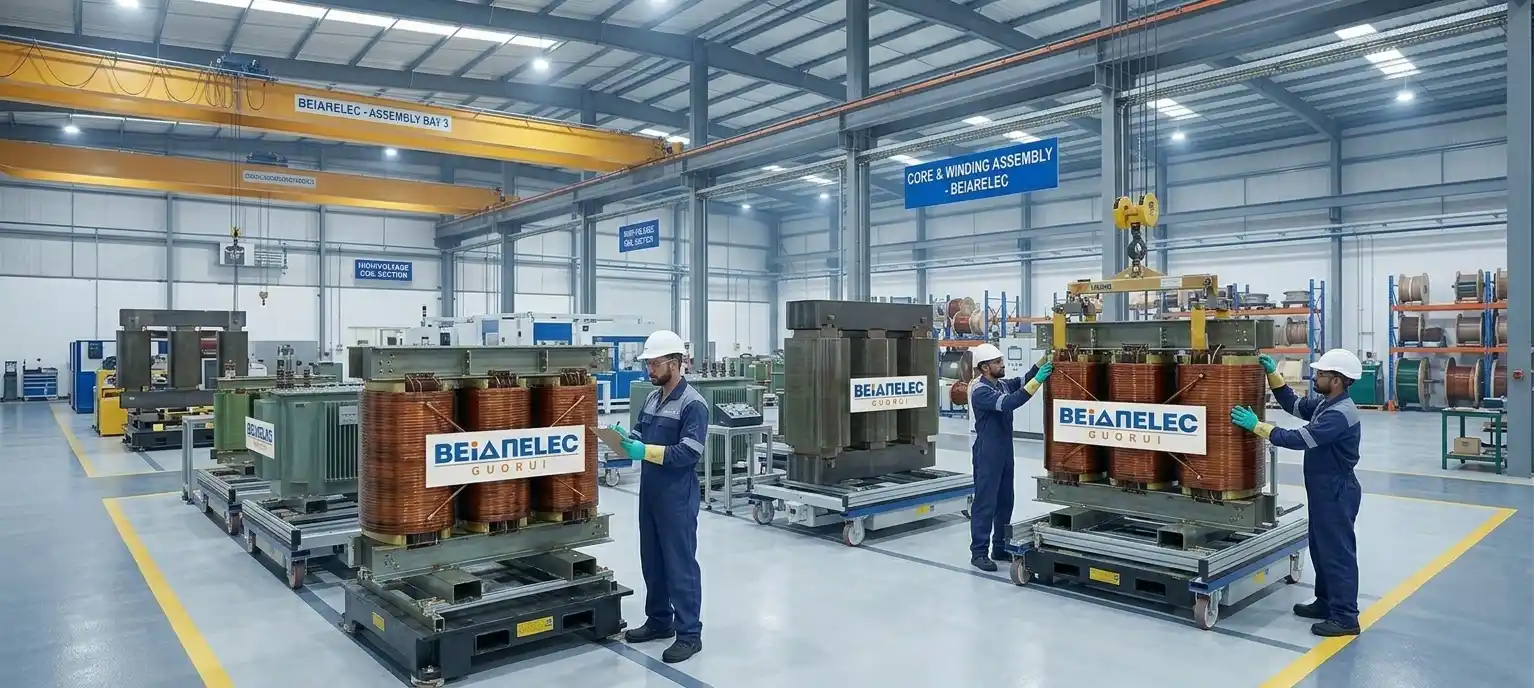

How to choose cast resin transformers manufacturers
Safety, reliability, and performance of electrical applications depend on selecting the proper cast resin transformer manufacturer.
- Standards compliance Indicates conformity with recognized IEC 60076-11, IEEE, or equivalent global standards for safety and performance.
- Quality of insulation The quality of insulation is determined by the quality of the epoxy resin casting. Epoxy resin is preferred as it provides insulation and resistance to moisture.
- Environmental performance Resistance to fire and self-extinguishing design and low impact on the environment make for the best transformers.
- Manufacturing experience Manufacturers with proficiency and competency gained as a result of their use of advanced production technology acquire greater competitive advantage.
- Testing and certification Routine and type testing are necessary for a transformer to prove electrical, thermal and, mechanical reliability and performance.
- Customization capability Ability to design transformers to meet the specific requirements as to voltage, capacity, and installation conditions.
Read More : Top Switchgear manufacturers in China
Key Components of a Quality Cast Resin Transformer
Once a cast resin transformer is fabricated, it ensures quality, safety, and efficiency with a cast resin transformer’s insulation. Some of the important components of a cast resin transformer may include:
- Core: Laminated, silicon steel improves efficiency.
- Winds: Encapsulation in epoxy resin enhances insulating properties.
- Insulation: Epoxy resin provides insulation from moisture and dust.
- Cooling: Dissipates heat with natural or forced air cooling.
- Enclosure: Protects the internal components and increases safety.
Industry Standards and Certifications for Resin Transformers
Compliance with industry standards and certifications ensures that cast resin transformers manufacturers produced them to suit given electrical applications and environments.
- IEC 60076-11: Establishes criteria for dry-type and cast resin transformers.
- IEC 60076 series: Address issues of design, testing, and performance of transformers.
- IEEE standards: Establishes design, testing, and operational safety.
- ISO 9001 certification: Provides assurance of good quality management in manufacturing.
- CE marking: Indicates conformity with European safety and environmental directives.
The Manufacturing Process of High Quality Resin Coils
There are main steps of manufacturing process to produce high quality products
- Copper and aluminum conductors are wound and insulated for optimal electrical response.
- Windings are spacing accurately to shape in placed molds.
- A vacuum is applied to draw resin into molds and eliminate air pockets for better quality control of insulation.
- A rheological, solid resin is of high mechanical strength and thermal resistance is achieved during curing.
- Coils endure multiple electrical, thermal, and mechanical tests to check insulation quality, strength, and to ensure they are able to withstand extreme conditions.
Read More : Best Substation Transformer Manufacturers
Applications of Cast Resin Transformers in Commercial use
Cast resin transformers are perfect for a wide variety of commercial uses due to their reliability as well as their safety and low maintenance requirements for indoor and fire sensitive environments.
- Office Buildings: Power distribution for lighting, HVAC, equipment safely and efficiently
- Shopping Malls: Fire-proof, reliable operation to meet demand for high loads
- Hospitals: Maintains continuous power in critical settings
- Hotels: Enables stable power to facilities and guest services
- Airports: Used in terminals and in other fire sensitive environments to power distribution
- Data Centers: Protection of sensitive equipment to power equipment with stable, clean power supply.
Technical Support and Warranty for Resin Transformer Buyers
Cast resin transformers manufacturers should provide buyers with expect accompanying warranty and technical support services.
- Professional recommendations based on application and load to help the client choose the optimal transformer.
- Compliance with procedures and guidelines to achieve proper setup and commissioning.
- Protection against defective workmanship and failure to meet warranty obligations.
- Guidance regarding inspections and assistance with troubleshooting issues.
- Resin cast current transformers manufacturers should guarantee replacement parts to guarantee minimum downtime.
- Comprehensive users, manuals, drawings, and test reports.
Why Beianelec is one the best cast resin transformers manufacturers
Beianelec as one of the best cast resin transformers manufacturers wins when it comes to cast resin transformers as smart power distribution technology with certified and robust engineering.
- Solid International Operations: Company has deliveries in more than 35 countries.
- Safety and Quality Compliance: All products meet IEC, ISO 9001, ISO 14001 and CE norms
- Manufacturing Efficiency: Automated manufacturing and good engineering ensures consistent quality for all products.
- Advanced Custom Design: Products have been customized and designed for specific environmental, class and project stipulations.
- Lossless and Better Impact Structures: Products are designed to be eco-structured with minimal loss.
- Predictive Mechanism: products are designed and integrated with SCADA and IoT for smart control mechanisms.
- Routine testing and reliability: the products have been deeply tested to ensure reliability and longevity of mechanisms.
- Global and Warrantied Services: Well-advanced Company has Global Operations and the service is guaranteed and technical assistance is long-term.
FAQs
Are cast resin transformers better than oil filled ones?
Compared to oil-filled transformers, cast resin transformers are preferable for touchy environments with high fire risks or for settings that require low maintenance due to their safety and environmental advantages. For higher capacity, superior cooling, and outdoor uses, oil-filled transformers are preferable.
Do cast resin transformers require regular maintenance?
Oil-filled transformers require a lot more maintenance when compared to cast resin transformers. With cast resin transformers, the most oil-intensive maintenance is avoiding different oils stains as a result of oil seepage, as oil needs to be checked and replaced periodically.
How long do cast resin dry type transformers last?
The longevity of cast resin dry-type transformers is generally between 20 to 30 years, but with optimal installation, operation, and maintenance the lifespan of the cast resin transformer can be extended regardless of the operating stress and the surrounding environment.
